Detailed introduction

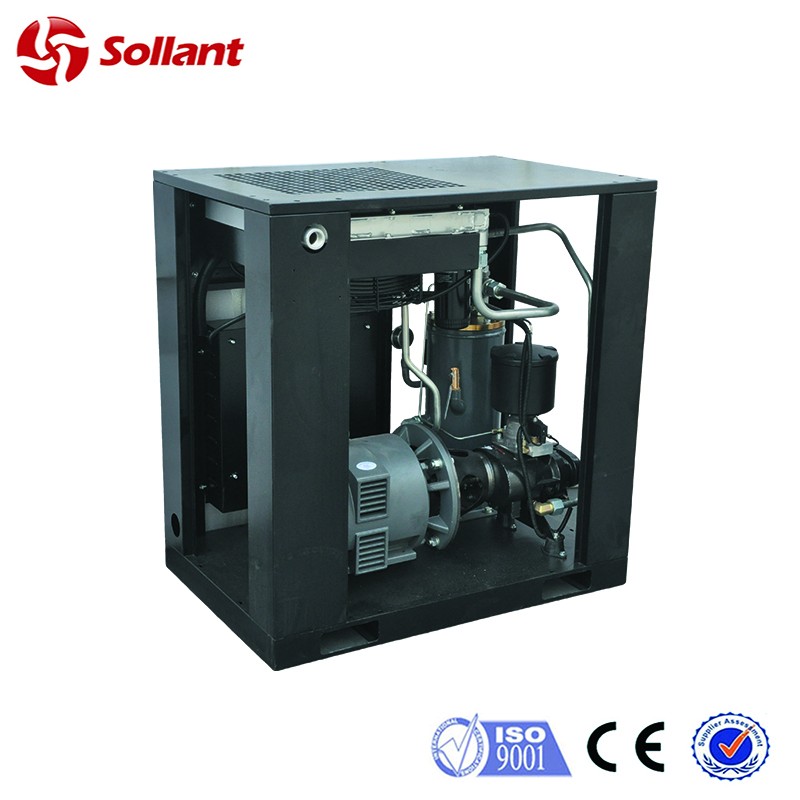

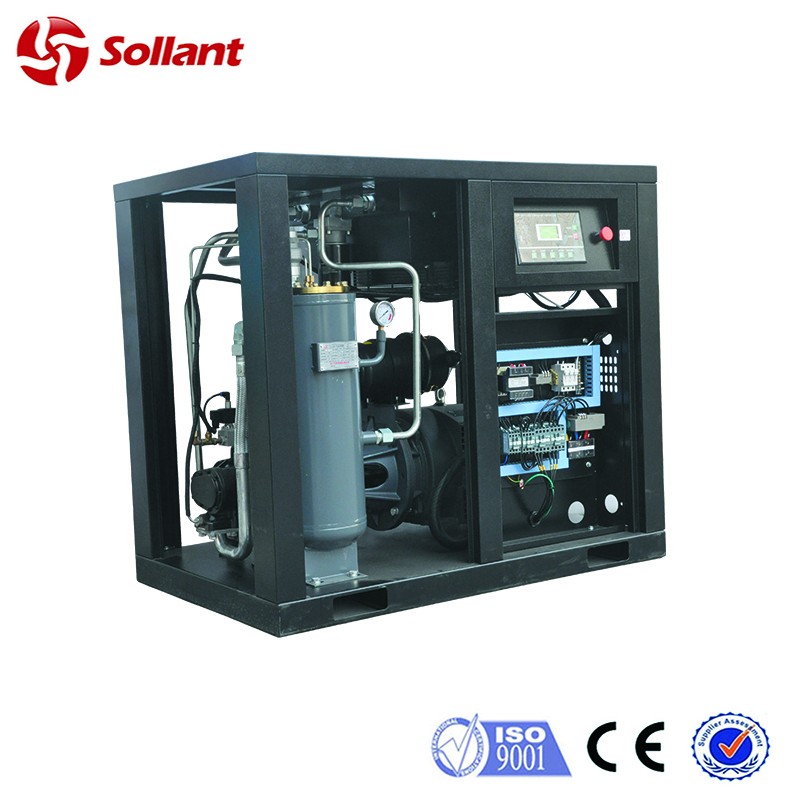

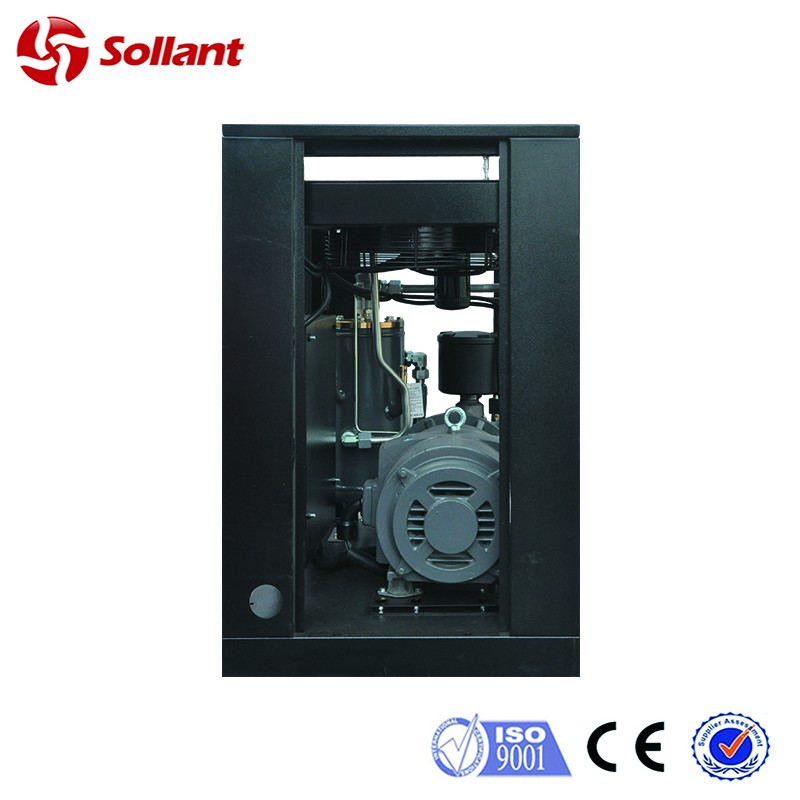

Fixed speed screw air compressor | |||||
Model | AT-20A | ||||
Capacity/Pressure(m3/min,/BAR) | 2.3/7 | 2.25/8 | 1.8/10 | 1.6/12 | |
Motor | Power(KW) | 15 | |||
Speed(r/min) | 2945 | ||||
Starting way | △ | ||||
Volt(V) | 380 | ||||
Motor safety grade | IP23/55 | ||||
Motor isolation grade | F | ||||
Electrical Supply | 380(415)V/50Hz/3Phase | ||||
Outlet Temperature(℃) | ≤ ambient Temperature+15ºC | ||||
Driven way | Direct Driven | ||||
Noise level at 1 meter | 65±3dB(A) | ||||
Cooling method | Air cooling | ||||
Oil content | 1~3 ppm | ||||
Outlet Connection(Inch) | G 1 | ||||
Dimension | Length(mm) | 1050 | |||
Width(mm) | 700 | ||||
Height(mm) | 1150 | ||||
Weight(KG) | 335 |

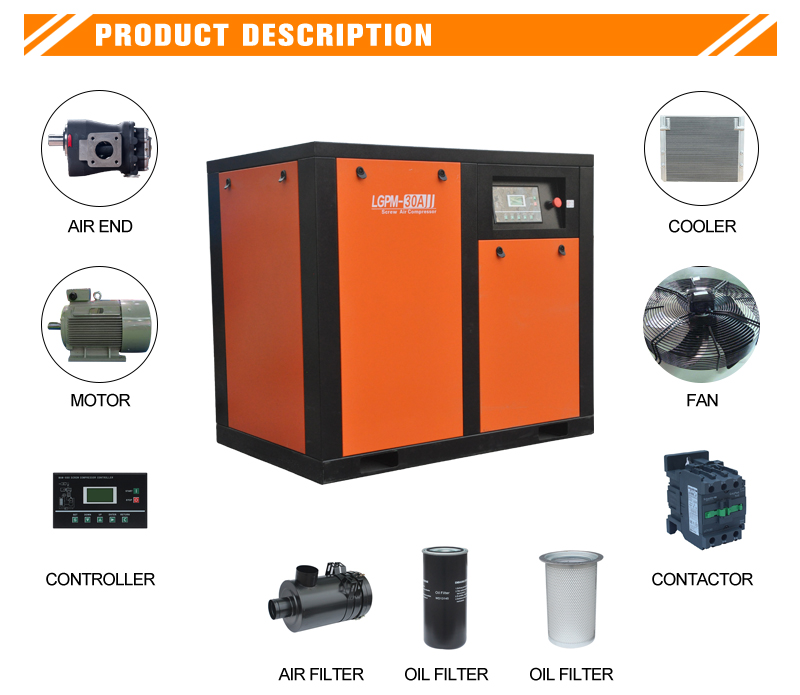

Rotor:
Rotors are asymmetric in profile, backed up by ball bearings and roller bearings. Operates at a low speed, thereby low in abrasion and maintenance expenses, air end is long service life. Helical gears can produce axial force to kill some acting force, which reduces the load of the bearing of air end.
Control panel:
Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following your instructions, remote control realizes unattended operation, and the user-friendly human-machine interface displays instructions and parameters in written form also, it can function to self diagnose faults, give warning and automatically regulate the capacity.
Oil filter:
Rotary filters are applied to completely remove the impurities in the lubricating oil, easy to replace and free of oil impregnate.
Cooler:
It is designed for low temperature difference to increase heat exchange area, and ideal to be applied to high-humidity operating environment.
Excellent quality of motors:
Compared to normal motors, Servo motors have smaller dimensions and more excellent energy saving.It will exert incomparable energy saving effect than normal inductive motor when installed with the special frequency convectors.
The host machine of compressor is of high efficiency and long life:
The quality of host machine of permanent magnet synchronizing variable frequency compressor is excellent. The advanced molded lines ensure the minimum specific power.It is designed in the FEM strength analysis.to ensure the stability and reliable of each part,and to realize long term operation with no faults,low noise and long life.
Why choose us
1. Reliability.
Continuous testing for many years can ensure the absolute reliability of permanent magnet frequency conversion.
Fully sealed oil cooling shell can completely prevent dust and liquid.
Optimal performnce fulfill the customer' s need of purchasing the most affordable repairable part.
2. Energy saving.
Campared with non variable speed screw air compressor,it can save 50% energy.
Large displacement. variable frequency range from OHZ to 300HZ the exhaust volume increases as high as 28%.
High efficiency motor (IPM) can up to 94. 5%. and achieve the efficiency level of IE4.
3. High efficiency
Compared with other manufacturers in the production of ordinary frequency conversion machine . our air compressor can save about 6%-7% energy.
In the air compressor life cycle. the total costs are composed of the cost of purchase matainance and energy. Frequency conversion control system can reduce energy consumption, thus reduce the total cost of air compressor .
4. New change
Adopting the new concept of frenquency conversion air compressor achieve the highest energy saving effect in this industry .
More compact design, more closed body, less noise, less floor
Leading the future direction of the air compressor, establishment the industry standards. to provide customers with the value of energy.
How much can you save if you buy our screw air compressor?
Production of compressed air energy consumption may be more thaconsumption, can significantly reduce energy consumption, VS conon actual gas consumption, reduce the additional 44% to 25% of the energy saving program.
Special Customized Service
1) Full OEM
Quantity: at least 1 set.
In this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.
2) Half OEM
Quantity: no limit
Under this program, we can make the necessary alteration (name plate and logo) but we will charge some extra fee for the name plate, as the name plate factory has the MOQ.
3) Logo OEM
Quantity: no limit
Only the logo will be changed to yours, and no extra fee will be charged.
Overseas Engineer Service
We are available to send our engineer for aboard service. Only need you to arrange the accommodation, transportation and translator. Extra cost for each will be discussed based on local price level.
