Product details：

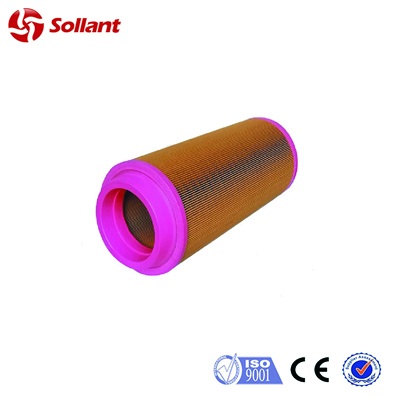

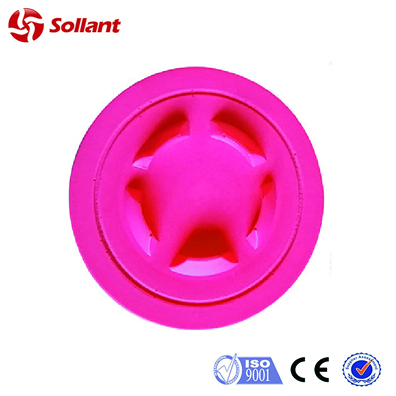

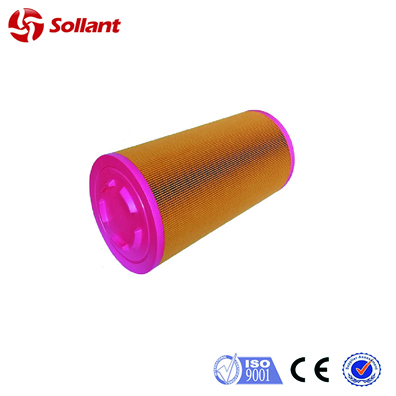

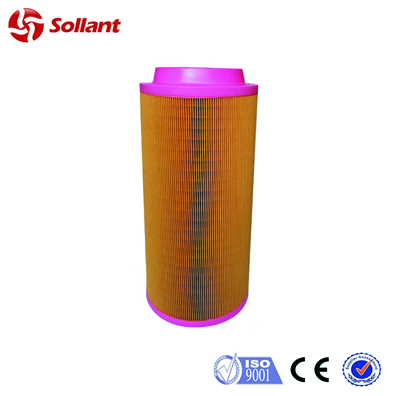

OD：128mm ID：78mm  Height：316mm

The Air compressor filter consists of an air filter assembly and a filter element. The external connection is connected to the air intake valve of the air compressor through a joint and a threaded pipe to filter dust, particles and other impurities into the air. Different air compressor models can choose the air filter to be installed according to the amount of air intake.

I. Air filter classification

Vertical Air Filter: It consists of four basic housings and various filter joints to suit the specific requirements of the customer. The outer casing, filter joint and filter element are free of metal parts. According to the design, the rated flow of the module system can be from 0.8m3/min to 5.0 m3/min.

Horizontal air filter: anti-collision plastic case, will not rust. The air intake is large and the filtration efficiency is high. The product consists of seven different housings and two vents to suit the customer's specific requirements. The modular system can be rated for flow rates from 3.5 m3/min to 28 m3/min, depending on the design.

Second, the principle of air filtration

Granular pollutants suspended in the air are composed of solid or liquid particles. Atmospheric dust can be divided into narrow atmospheric dust and generalized atmospheric dust: narrow atmospheric dust refers to solid particles in the atmosphere, that is, real dust; the modern concept of atmospheric dust includes both solid particles and polydisperse aerosols of liquid particles. Specifically refers to the aerosol in the atmosphere, the particle size is less than 10μm, which is the generalized atmospheric dust. For particles larger than 10μm, because of the heavier, after a period of random Brownian motion, they will gradually settle to the ground under the action of gravity, which is the main target of ventilation and dust removal; 0.1--10μm in the atmosphere Dust particles also make irregular movements in the air. Because of their light weight, they are easy to float with the airflow, and it is difficult to settle to the ground. Therefore, the concept of atmospheric dust in air cleaning technology is different from the concept of dust in general dust removal technology.

The air filtration technology mainly adopts the filtration separation method: by setting filters of different performances, the dust particles and microorganisms in the air are removed, that is, the dust particles are trapped and intercepted by the filter material to ensure the cleanliness requirement of the air volume.

Three. Air filter maintenance

When the filter element of the air filter is used, the necessary maintenance should be carried out. The following basic guidelines should be observed during maintenance: 1. Select the maintenance time according to the differential pressure switch or the information indicator of the differential pressure indicator. The hazard of regular inspection or cleaning on site sometimes outweighs the benefits. There is a risk of dust entering the engine due to damage to the filter element. 2. It is recommended to replace, not to clean the filter element, so as to avoid damage to the filter element and maximize the protection of the engine. 3. When you have to clean the filter, you should pay special attention not to wash the filter. 4. Please note that the safety core cannot be cleaned and can only be replaced. 5. After maintenance, carefully clean the inside of the housing and the sealing surface with a damp cloth.

Why choose us

1. Reliability.

Continuous testing for many years can ensure the absolute reliability of permanent magnet frequency conversion.

Fully sealed oil cooling shell can completely prevent dust and liquid.

Optimal performnce fulfill the customer' s need of purchasing the most affordable repairable part.

2. Energy saving.

Campared with non variable speed screw air compressor,it can save 50% energy.

 Large displacement. variable frequency range from OHZ to 300HZ the exhaust volume increases as high as 28%.

High efficiency motor (IPM) can up to 94. 5%. and achieve the efficiency level of IE4.

3. High efficiency

Compared with other manufacturers in the production of ordinary frequency conversion machine . our air compressor can save about 6%-7% energy.

In the air compressor life cycle. the total costs are composed of the cost of purchase matainance and energy. Frequency conversion control system can reduce energy consumption, thus reduce the total cost of air compressor .

4. New change

Adopting the new concept of frenquency conversion air compressor achieve the highest energy saving effect in this industry .

More compact design, more closed body, less noise, less floor

Leading the future direction of the air compressor, establishment the industry standards. to provide customers with the value of energy.

How much can you save if you buy our screw air compressor?

Production of compressed air energy consumption may be more thaconsumption, can significantly reduce energy consumption, VS conon actual gas consumption, reduce the additional 44% to 25% of the energy saving program.

Special Customized Service
1) Full OEM
Quantity: at least 1 set.
In this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.
2) Half OEM
Quantity: no limit
Under this program, we can make the necessary alteration (name plate and logo) but we will charge some extra fee for the name plate, as the name plate factory has the MOQ.
3) Logo OEM
 Quantity: no limit
 Only the logo will be changed to yours, and no extra fee will be charged.
Overseas Engineer Service
We are available to send our engineer for aboard service. Only need you to arrange the accommodation, transportation and translator. Extra cost for each will be discussed based on local price level.
